Max Performance Kit = Full Delete Kit from the turbo back with full catback and dual tips
The only sensor installed on the exhaust is the primary O2 located at the top of the DPF all other exhaust sensors can be disconnected from the harness.
Increase the performance, reliability and fuel economy of your 2015 VW Jetta TDI by eliminating the restrictive Diesel Particulate Filter (DPF), Exhaust Gas Recirculation (EGR) system, Adblue system, catalytic converters and factory muffler, thus allowing the exhaust to flow more freely.
With this setup you should expect a much more aggressive exhaust sound. We highly recommend one of the resonator options when running this turbo back exhaust. The resonator will give a nice deep exhaust note and eliminate highway exhaust drone. A non resonated exhaust will sound much louder and will drone at around 2000 rpm on the highway. Our Cortek resonators are 100% free flow so there is zero power or fuel economy loss.

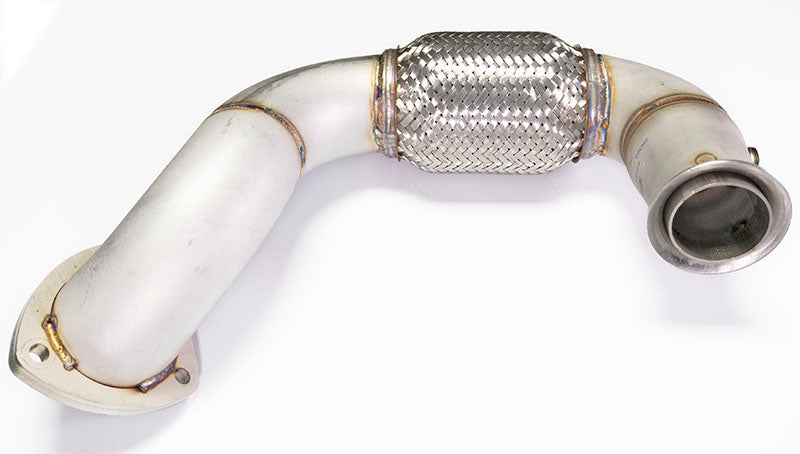

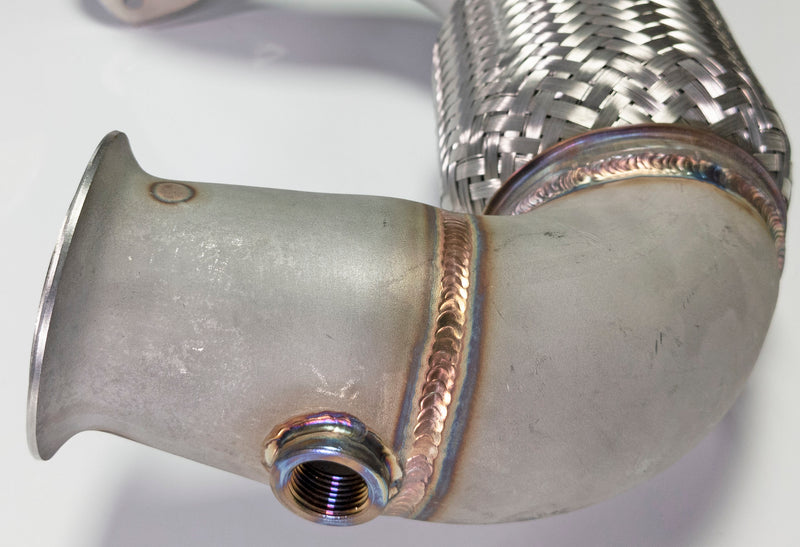

The DPF Delete downpipe is built to last with 304 grade stainless steel and the world's most reliable aftermarket flex pipe. Rest assured that all your original sensors will be plugged back in where they belong in the new downpipe. Rawtek has engineered this downpipe to be as good as it can be. With a smooth flare from the turbo outlet to the large 2-3/4" ID constant diameter tubing, nothing will outflow this downpipe. There is even a centering sleeve on the inlet which helps locate the downpipe on the turbo as well as maximize exhaust flow and prevent leaks.
All of the hardware needed for installation is included.
What's in the box
- DPF & EGR Delete Downpipe - for VW TDI CR150
- DPF & EGR Delete Exhaust 3" Midpipe for 2.0L CR TDI
- Cat-Back Exhaust System for VW Jetta TDI (2014+)
- EGR Block Off Plug - for VW TDI CR150
- Exhaust Gasket - 3 Bolt 3"
- 3" Exhaust Strap Clamps (2)
- 2.5" Exhaust Strap Clamp (1)
- Stainless Steel Nuts and Bolts
- Up to 185 horsepower (+35 hp)
- Up to 323 ft-lbs torque (+73 ft-lbs)
- Up to 20% better fuel economy (+10 mpg)
- Longer turbo life (no more DPF)
- Clean Air Intake Manifold (no more EGR)
- Longer engine oil life (no more EGR)
- No more AdBlue fluid
- Fix intercooler icing problem (no more EGR)
- 304 stainless steel
- Downpipe: 3" OD Schedule 10 pipe (1/8" thick)
- Midpipe: 3" OD 16 gauge tubing
- Easy to follow step by step installation guide (see below)
- 100% bolt-on
Fitment:Will fit the following North American spec vehicles with DPF (diesel particulate filter):
- VW Jetta 2.0L CR TDI (2015+)
- What's the difference between the ECO Kit and the Max Performance Kit?
- Will I have a Check Engine Light after doing the DPF Delete Kit?
- What are the power increases?
- Can I do the installation myself?
- Do I really need to tune my ECM to use the DPF delete kit?
- How long does it take to install the Rawtek DPF delete kit?
- How do I get my ECM tuned?
- How do I get my DSG transmission tuned?
- Why do you only offer TuneZilla tunes?
- Do I need the Resonator and why?
- Which midpipe should I get?
- Will the exhaust drone on the highway?
- What will my car sound like?
- Will my DSG transmission handle the extra torque?
- Will my car make black smoke?
- Will my clutch hold all that torque?
- What about emissions?
- Will these parts and/or tuning affect the reliability of my car?
- Will these parts void my warranty?
- What are the fuel mileage gains?
- I drive a Sprinter, how can I read the error codes?
- How can I tell of my Sprinter uses the old or new exhaust kit?
What's the difference between the ECO Kit and the Max Performance Kit?
ECO Kit is the basic Delete Kit and retains the existing (factory) muffler, while the Max Performance is from the turbo back with the full catback and tip (dual on golf, Jetta, Sportwagen and Beetle and single on Passat).
Will I have a Check Engine Light after doing the DPF Delete Kit?
As long as the proper TuneZilla software is installed in conjunction with the DPF delete downpipe and midpipe, you will NOT have a check engine light on for anything related to the exhaust system. If you already have a check engine light, or DPF light on for a problem with your exhaust, this will be cured at the same time. Rest assured that the check engine light will still be 100% functional and in the event that there is a problem with something unrelated to your exhaust in the future, the light will come on to notify you.
What are the power increases?
Power and torque are increased substantially. Volkswagen rates stock power for the North American 2.0L CR TDI engine (2015+) at 140HP and 240Lbs-ft. With a Rawtek DPF delete exhaust system and TuneZilla stage 2 tune, we have seen 185HP and over 323TQ. That is an increase of 70HP and 146TQ beyond stock ratings ... RELIABLY! *calculated using a standard 15% drivetrain loss.
Can I do the installation myself?
Yes! Detailed parts installation guides are available for download at the bottom of the product pages and on the Instructions & Guides page. Basic mechanical skills and some specialized tools are required so if you are not accustomed to working on your car, we recommend that you take the installation to a reputable shop. Most TuneZilla tuning dealers are well qualified to perform the installation.
Do I really need to tune my ECM to use the DPF delete kit?
Yes! In order for the vehicle to run properly without any check engine lights or fault codes, your ECM must have the appropriate tune for the parts installed.
How long does it take to install the Rawtek DPF delete kit?
Installation time averages 4 hours but can take longer if you do not have access to a vehicle lift or if your original parts are damaged or rusted.
How do I get my ECM tuned?
Tuning is available in one of two methods:
-Bench Flash ; This involves removing the ECU and shipping it to be tuned using UPs labels that are sent to you by email. This only applies to the following vehicles: Sprinter Vans, 09-10 3.0L TDI engines (Touareg/Q7), and 2014+ BMW models.
-Flashzilla device; We ship you a small handheld tuner that you use to read the factory file and email it to us for tuning. This is our preferred method and we will not offer a bench flash if Flashzilla tuning is available.
How do I get my DSG transmission tuned?
Your DSG transmission must be tuned on the vehicle, meaning we cannot tune it by mail order. There are two ways you can get your DSG transmission tuned:
Have an authorized TuneZilla Dealer tune it for you.
For more information concerning DSG tuning please feel free to contact TuneZilla here.
Notes: DSG tuning is separate from ECM tuning. Rawtek only offers DSG tuning when the vehicle is on site.
Why do you only offer TuneZilla tunes?
TuneZilla is the best VW TDI tuner out there, bar none! We worked closely with TuneZilla during the development of our parts and have been consistently impressed with the power, reliability and customer service.
Do I need the Resonator and why?
First of all, the resonator is 100% straight through and causes zero power loss and because of it's unique shape it will not affect ground clearance. Whether or not you need a resonator depends on what type of sound you are looking for. If loud and raw is what you are after then you do not need it. If you want something a little more subtle or you do a lot of long distance driving, then you do need it. We highly recommend the resonator when you have a complete turbo back exhaust, because without it, the car will be quite loud and will tend to drone on the highway. The resonator eliminates drone entirely and brings the overal volume down to a reasonable yet sporty level. You will hear a deep performance note when you are hard on the throttle but it will not be intrusive at idle or cruise. If you plan on keeping the stock rear exhaust with muffler then you can get away with not having the resonator. The stock muffler will quiet down the exhaust enough for most people but the resonator will provide a smoother, more refined tone.
Which midpipe should I get?
The factors to consider when choosing a midpipe are Budget, Environment and Sound Quality. The chart below will help you choose components based on your priorities:
- Budget - Straight Pipe
- Environment - High Flow Cat
- Sound Quality - Resonator
- Environment and Quietness - High Flow Cat and Resonator
See the following FAQs for more information:
- Do I need the high flow catalytic converter and why?
- Do I need the resonator and why?
Will the exhaust drone on the highway?
The only time your exhaust will drone while cruising on the highway will be if you have a complete exhaust system with no muffler or resonator. This is why we strongly suggest a resonator when buying a complete turbo back exhaust. As long as you have a resonator or you are keeping your stock rear exhaust with muffler, your car will not drone.
What will my car sound like?
The best way to explain how your car will sound like is to show you. We will be making some detailed sound clips of all of our exhaust systems this spring. In the mean time you can find many exhaust sound clips from some of our existing customers here.
Rawtek TDI Exhaust Sound Clips sur YouTube
Will my DSG transmission handle the extra torque?
Whenever you increase the torque output of the motor, the DSG transmission must be tuned to compensate. If you do not tune the DSG transmission to match the increased torque, you will experience rough shifts that could damage your transmission over time. There is one option that will allow you to delete the DPF without having to tune your DSG. This is called the ECONO tune from TuneZilla. The ECONO tune will allow your car to run properly without the DPF while maintaining stock power levels. This tune is designed for minimizing fuel consumption and not for maximum power.
Will my car make black smoke?
Econo Tune: No black smoke ever! Stage 1 with stock exhaust: No black smoke ever! Stage 1 with DPF delete: No black smoke at idle or cruise, but some under hard acceleration. Stage 2 with DPF delete: No black smoke at idel or cruise, but yes under hard acceleration.
Will my clutch hold all that torque?
Yes! To date we have not heard any incidents of clutches slipping. On our Rawtek MK6 Jetta TDI we have the most aggressive stage 2 tune with our complete DPF delete exhaust and we drive it quite hard. We have never had the clutch slip... ever!
What about emissions?
Removing or tampering with any factory emissions components is illegal. Our DPF delete kits are intended for OFF ROAD USE ONLY!
Will these parts and/or tuning affect the reliability of my car?
YES! Your car will be MORE reliable. The Rawtek DPF Delete Downpipe and other performance exhaust parts, will actually make your car more dependable. Here is a list of the most common reliability issues with the CR 2.0L TDI engine:
- Clogged or failed DPF
- Burnt out EGT Sensors (can cause DPF to fail)
- Failed exhaust flap valve
- EGR system failure
- Condensation in EGR leading to water locking the engine
With our exhaust kit all these unreliable parts are eliminated and you will never have to deal with these issues. If you have already experienced any of these problems, then our parts are the solution. What's more...TuneZilla Tunes are designed not to push the engine or turbo beyond their physical limitations. All the power increases are made without the added stress of increased turbo boost pressure or fuel pump pressure. To date we have never heard of anybody experiencing any reliability issues related to TuneZilla.
Will these parts void my warranty?
Legally speaking... No, your warranty should not be affected because there is no added stress placed on your original parts. Realistically... If you are concerned, talk to your dealership and explain that the tuning does not alter turbo boost pressure or fuel pump pressure. You may also want to mention that the most problematic components of your car will be deleted and will therefore never need to be replaced under warranty. Unfortunately... Some dealerships will look for any excuse to deny a warranty claim. Remember that you can always reinstall your original parts if a major warranty issue should arrise.
What are the fuel mileage gains?
Under normal driving conditions we see up to a *15% increase in MPG. In most cases this translates to about 5 - 8 MPG better than stock. If your DPF is already blocked or starting to block, you may be getting poor gas mileage to start with so the gains would be significantly more. *15% is an average based on customer feedback and experience with our test vehicle. Individual results will vary depending on local climate and driving style.
I drive a Sprinter, how can I read the error codes?
The current headache with a Mercedes Certified Dealer or finding a local store with the proper diagnostic tools is enough to drive anyone crazy. Our experts at TuneZilla have tried several spare parts options and have opted for a simple and inexpensive tool that allows you to scan codes via the OBD port directly to your mobile device! Just go to Amazon and search for it - the BlueDriver Bluetooth Professional OBDII Scan Tool for iPhone, iPad and Android is $ 99 and you can use it to scan codes, monitor levels of increase or EGT and more!
How can I tell of my Sprinter uses the old or new exhaust kit?
Here is an image showing the difference between the old versus the new exhaust kit
